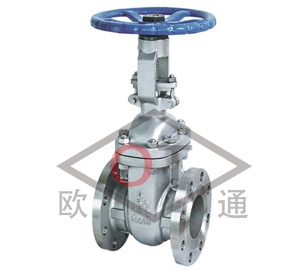

美标闸阀
产品特征 公称压力:150~600Lb 适用温度范围:200℃~350℃ 适用介质:硝酸类、醋酸类、水、油、气类及某些腐蚀性液体。 主要零件材质 零件名称 CF8 CF3 CF8M CF3M 阀体/阀盖 CF8 CF3 CF8M C
产品详情
![](file://C:\DOCUME~1\ADMINI~1\LOCALS~1\Temp\ksohtml\wps2E8.tmp.png)
产品特征
公称压力:150~600Lb
适用温度范围:≤200℃~≤350℃
适用介质:硝酸类、醋酸类、水、油、气类及某些腐蚀性液体。
主要零件材质
零件名称
|
CF8
|
CF3
|
CF8M
|
CF3M
|
阀体/阀盖
|
CF8
|
CF3
|
CF8M
|
CF3M
|
闸板
|
CF8
|
CF3
|
CF8M
|
CF3M
|
阀杆
|
F304
|
F304L
|
F316
|
F316L
|
填料
|
PTFE编织
|
PTFE编织
|
PTFE编织
|
PTFE编织
|
垫片
|
PTFE+304
|
PTFE+304L
|
PTFE+316
|
PTFE+316L
|
压盖
|
CF8
|
CF3
|
CF8M
|
CF3M
|
填料压环
|
304
|
304L
|
316
|
316L
|
螺栓
|
A193-B8
|
A193-B8
|
A193-B8M
|
A193-B8M
|
螺母
|
A194-8M
|
A194-8M
|
A194-8M
|
A194-8M
|
主要连接尺寸
型号
|
规格
|
尺寸(mm)
|
inch
|
DN
|
L
|
D
|
D1
|
D2
|
b
|
z-Φd
|
H
|
D0
|
Z41W50Lb
|
1/2"
|
15
|
108
|
89
|
60.5
|
35
|
12
|
4-Φ15
|
155
|
120
|
3/4"
|
20
|
117
|
98
|
70
|
43
|
12
|
4-Φ15
|
160
|
120
|
1"
|
25
|
127
|
108
|
79.5
|
51
|
12
|
4-Φ15
|
200
|
140
|
11/4"
|
32
|
140
|
117
|
89
|
64
|
13
|
4-Φ15
|
245
|
160
|
11/2"
|
40
|
165
|
127
|
98.5
|
73
|
15
|
4-Φ15
|
285
|
180
|
2"
|
50
|
178
|
152
|
120.5
|
92
|
16
|
4-Φ19
|
315
|
200
|
21/2"
|
65
|
190
|
178
|
139.5
|
105
|
18
|
4-Φ19
|
375
|
220
|
3"
|
80
|
203
|
190
|
152.5
|
127
|
19
|
4-Φ19
|
400
|
240
|
4"
|
100
|
229
|
229
|
190.5
|
157
|
24
|
8-Φ19
|
460
|
280
|
5"
|
125
|
254
|
254
|
216
|
186
|
24
|
8-Φ22
|
540
|
300
|
6"
|
150
|
267
|
279
|
241.5
|
216
|
26
|
8-Φ22
|
620
|
320
|
8"
|
200
|
292
|
343
|
298.5
|
270
|
29
|
8-Φ22
|
800
|
400
|
10"
|
250
|
330
|
406
|
362
|
324
|
31
|
12-Φ25
|
850
|
450
|
12"
|
300
|
356
|
483
|
432
|
381
|
32
|
12-Φ25
|
1000
|
500
|
14"
|
350
|
381
|
533
|
476
|
413
|
35
|
12-Φ29
|
1300
|
600
|
16"
|
400
|
406
|
597
|
540
|
470
|
37
|
16-Φ29
|
1400
|
600
|
18"
|
450
|
432
|
635
|
578
|
533
|
40
|
16-Φ32
|
1600
|
650
|
20"
|
500
|
457
|
698
|
635
|
584
|
43
|
20-Φ32
|
1850
|
650
|
24"
|
600
|
508
|
813
|
749.5
|
692
|
48
|
20-Φ35
|
2200
|
700
|
